ABOUT Robins

Since 1983, the Van Norman and Robins names have been synonymous with leading edge engine re-building technology. We offer a complete range of machinery for every type of engine builder. Whether you have a custom one-man machine shop, a diesel jobber shop or a high-volume production re-manufacturing facility, Van Norman / Robins has the right machine to suite your needs.

Thanks to unmatched dedication, diversity and innovative product development, our advanced designs and equipment continue to meet the most demanding engineering needs of engine builders and re-manufacturers around the world.

SG Series

Seat and Guide Machines



SG5

Cylinder Head Size (in Roll Fixture)

585mm x 254mm x 127mm

Spindle Tilt

+- 10 Degrees

Spindle Stroke

146mm

Spindle Speed

80-500 RPM

Surface Finish

< 0.4 RA μm

Micro Fine Feed

No

Spring Free Adapters

Yes

Constant Varying Speed

Optional
More details



SG7

Cylinder Head Size (in Roll Fixture)

815mm x 254mm x 127mm

Spindle Tilt

+- 15 Degrees

Spindle Stroke

172mm

Spindle Speed

35-500 RPM

Surface Finish

< 0.4 RA μm

Micro Fine Feed

Yes

Spring Free Adapters

Yes

Constant Varying Speed

Optional
More details



SG8

Cylinder Head Size (in Roll Fixture)

1015mm x 254mm x 150mm

Spindle Tilt

+- 15 Degrees

Spindle Stroke

216mm

Spindle Speed

35-500 RPM

Surface Finish

< 0.4 RA μm

Micro Fine Feed

Yes

Spring Free Adapters

Yes

Constant Varying Speed

Yes

More details

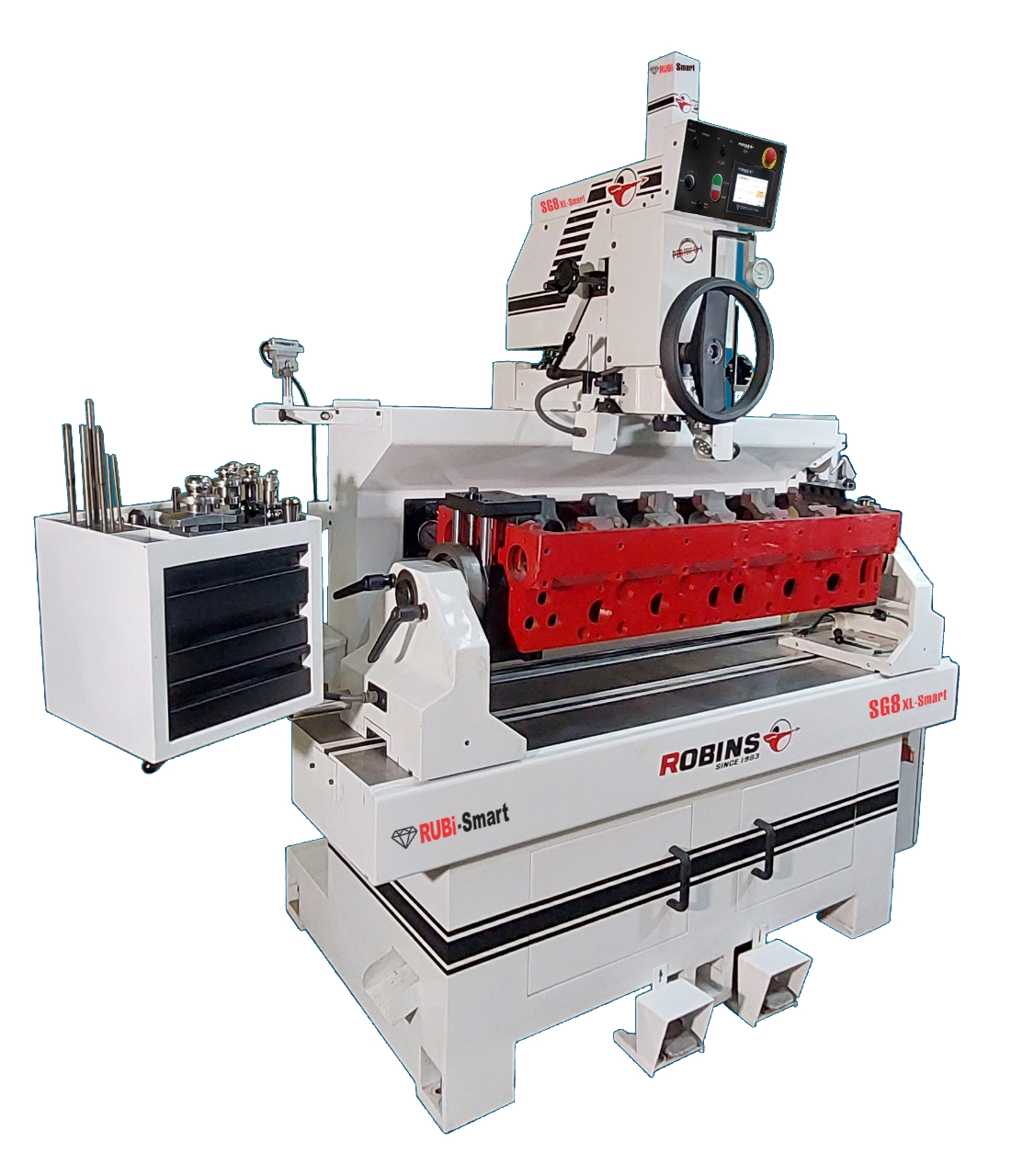

SG8XL-Smart

Cylinder Head Size (in Roll Fixture)

1200mm x 380mm x 254mm

Spindle Tilt

+- 15 Degrees

Spindle Stroke

216mm

Spindle Speed

35-500 RPM

Surface Finish

< 0.4 RA μm

Micro Fine Feed

Yes

Spring Free Adapters

Yes

Constant Varying Speed

Yes

More details

rubisurf Series

Cylinder Head & Block Surfacing Machines

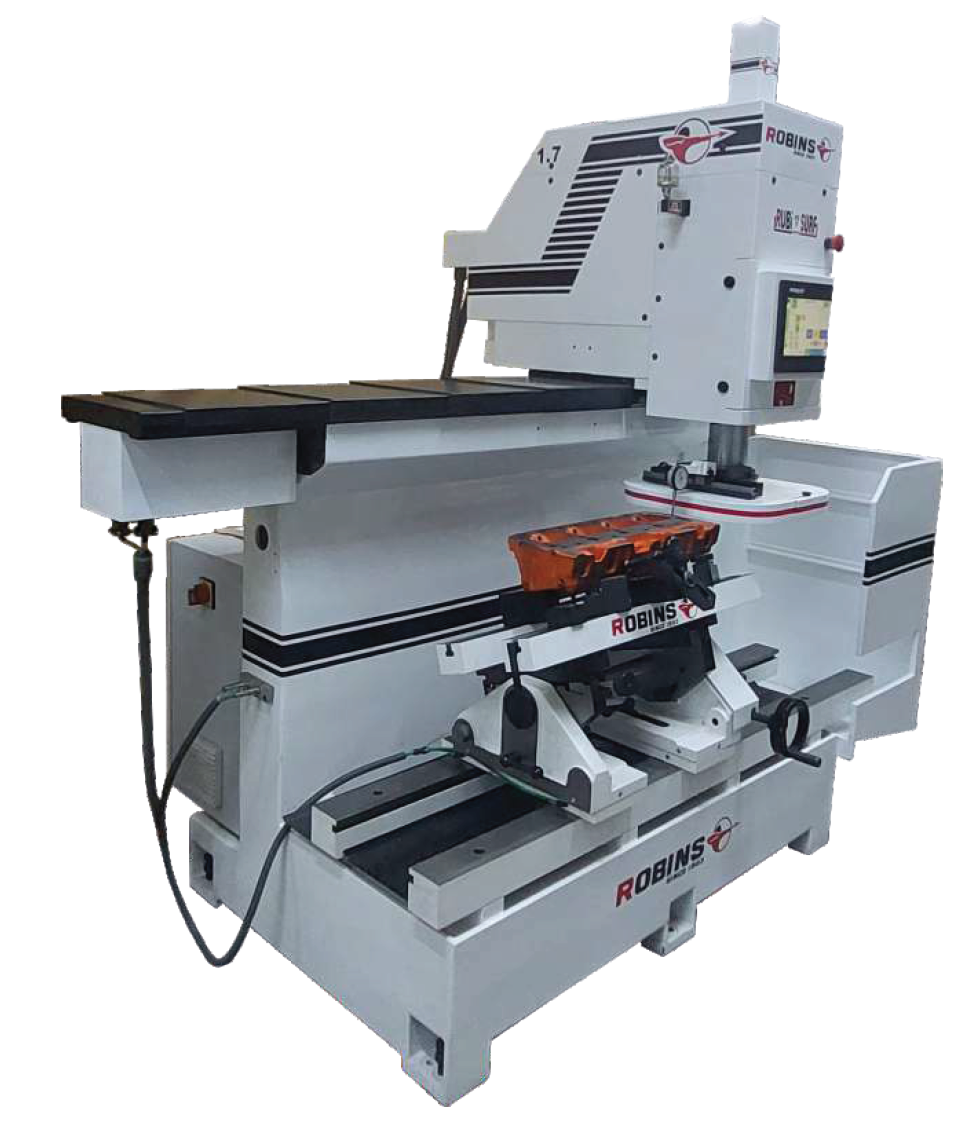

RubiSurf 1.7

Cutterhead Diameter

356mm

Max Work Head Travel

1065mm

Cylinder Head Length

865mm

Spindle Speed

200-1000

RPM Variable

Operator Panel

RubiSurf Touch

Smart Series

Lubrication

Centrally

More details



RubiSurf 1.9

Cutterhead Diameter

420mm

Max Work Head Travel

1400mm

Cylinder Head Length

1200mm

Spindle Speed

200-1000

RPM Variable

Operator Panel

RubiSurf Touch

Smart Series

Lubrication

Centrally

More details

GH Series

Guide Honing Machines



GH8

Maximum Length of Cylinder 111.76mm
Stroke Length 250mm
More details

VR Series

Valve Refacing Machines



VR5 & VR10

Base Cabinet & XL Coolant Tank VR10 Only
Mini Chuck Range 3.5mm – 7.1mm
Standard Chuck Range 4.0mm – 14.0mm
Large Chuck Range 11.0mm – 20.7mm
More details
