ABOUT rottler

Since 1923, the Rottler name has been synonymous with leading edge technology. We offer a complete range of machinery for every type of engine builder. Whether you have a custom one-man machine shop, a diesel jobber shop or a high-volume production re-manufacturing facility, Rottler has the right machine to suite your needs.

Rottler’s manufacturing facility boasts the finest equipment available for maximizing the precision componentry used in our products. Rottler machinery is built to last and assembled by committed professionals. In fact, Rottler still services original model boring bars with both trained factory technicians and spare parts. Rottler is dedicated to serving the life of your machine.

SG SERIES

Seat and Guide Machines



SG90A

Control Automatic CNC
Spindle – Diameter 95mm
Valve Seat Diameter Range 14-210mm
Cylinder Head Dimensions (with 360 degree rollover fixture) 1250L x 355W x 254Hmm
Workhead Tilt (either side of vertical zero) 10 Degrees
More details



SG9MTS

Control ManualMatic
Spindle – Diameter 80mm
Valve Seat Diameter Range 14-80mm
Cylinder Head Dimensions (with 360 degree rollover fixture) 1120L x 304W x 150Hmm
Workhead Tilt (either side of vertical zero) 15 Degrees
More details

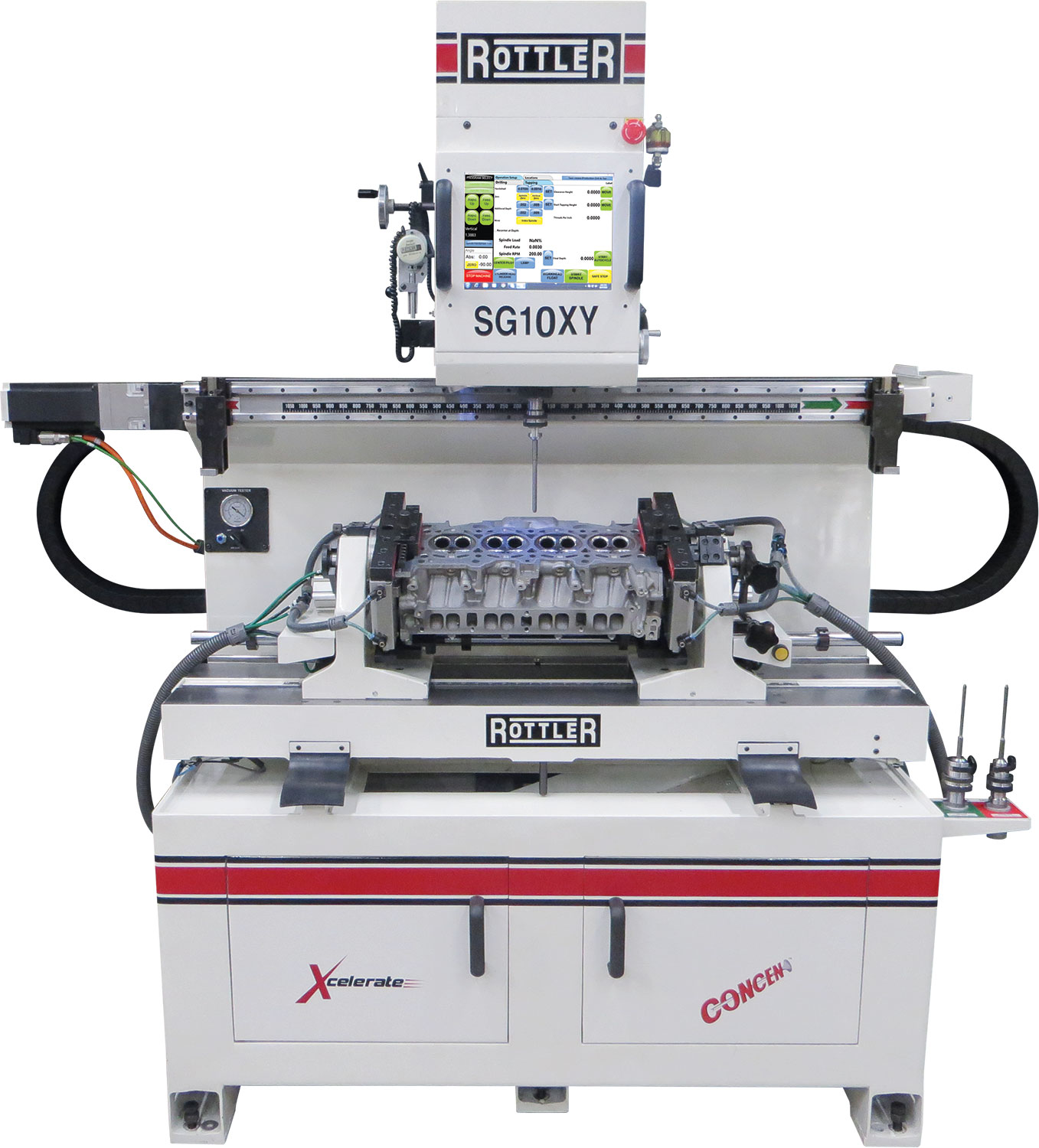

SG10XY

Control Automatic CNC
Spindle – Diameter 80mm
Valve Seat Diameter Range 14-80mm
Cylinder Head Dimensions (with 360 degree rollover fixture) 1120L x 304W x 150Hmm
Workhead Tilt (either side of vertical zero) 15 Degrees
More details

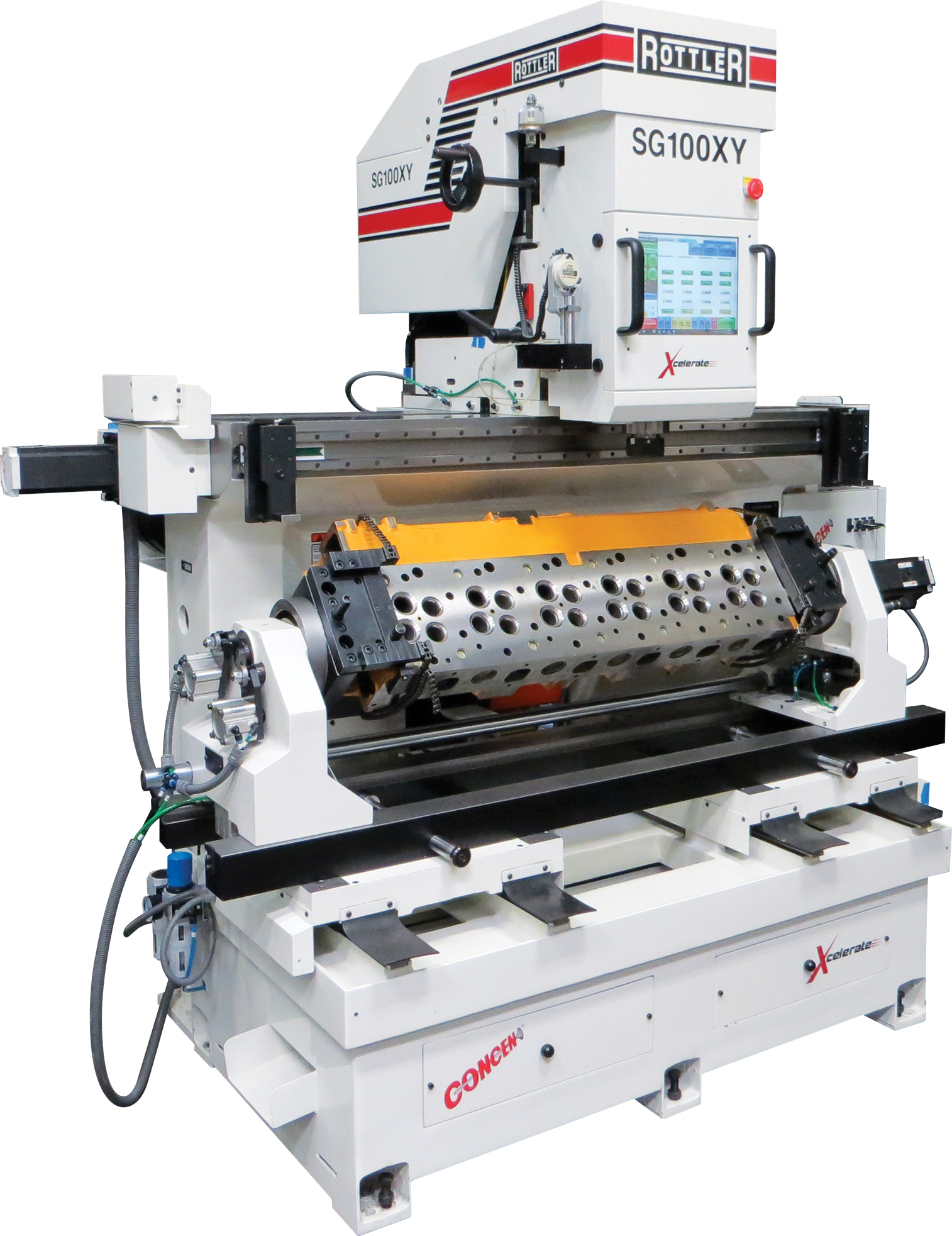

SG100XY

Control Automatic CNC
Spindle – Diameter 94mm
Valve Seat Diameter Range 0-152mm
Cylinder Head Dimensions (with 360 degree rollover fixture) 1270L x XW x XHmm
Workhead Tilt (either side of vertical zero) 10 Degrees
More details

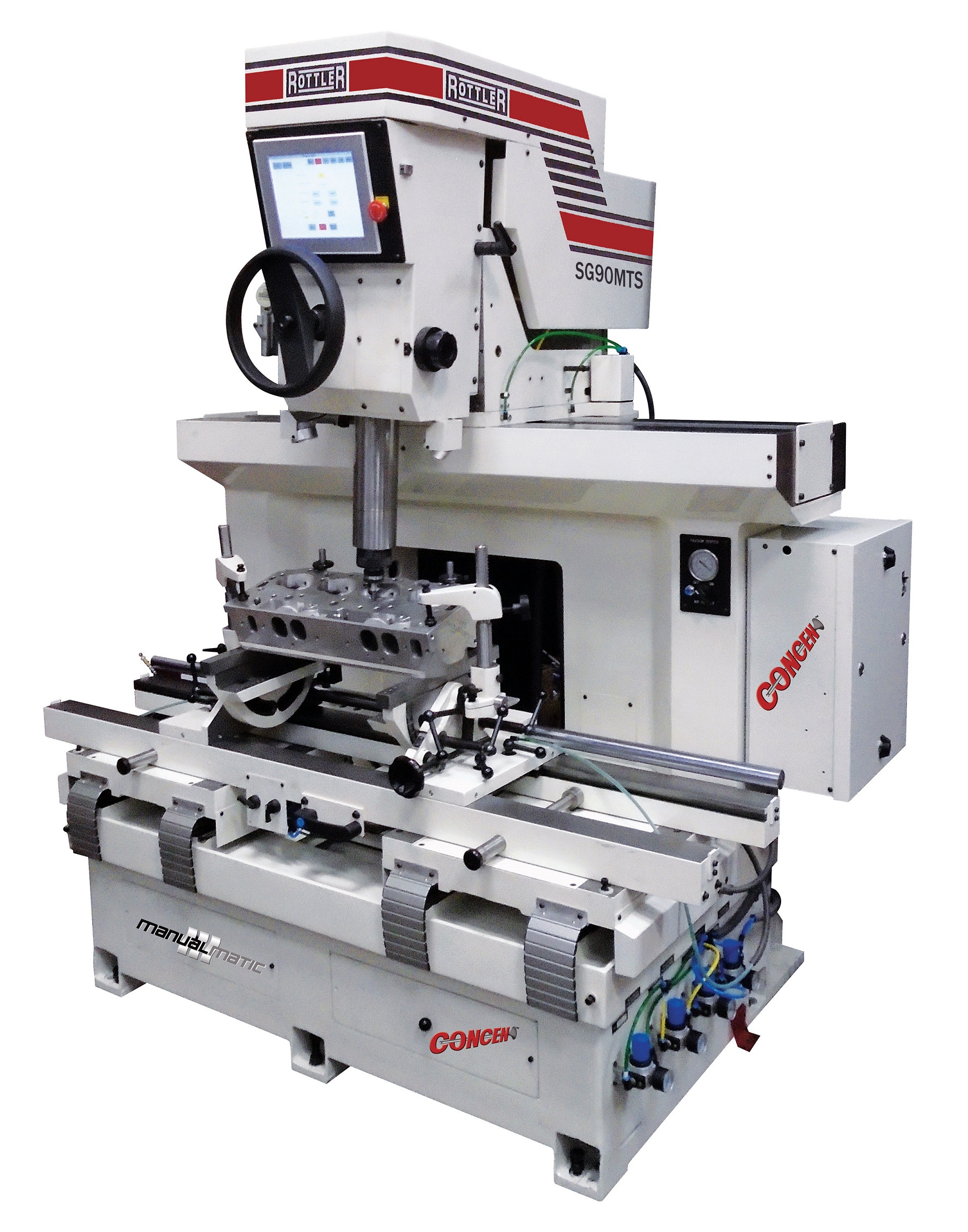

SG90MTS

Control ManualMatic
Spindle – Diameter 94mm
Valve Seat Diameter Range 0-152mm
Cylinder Head Dimensions (with 360 degree rollover fixture) 1270L x XW x XHmm
Workhead Tilt (either side of vertical zero) 10 Degrees
More details

EM60 SERIES

Engine Machines

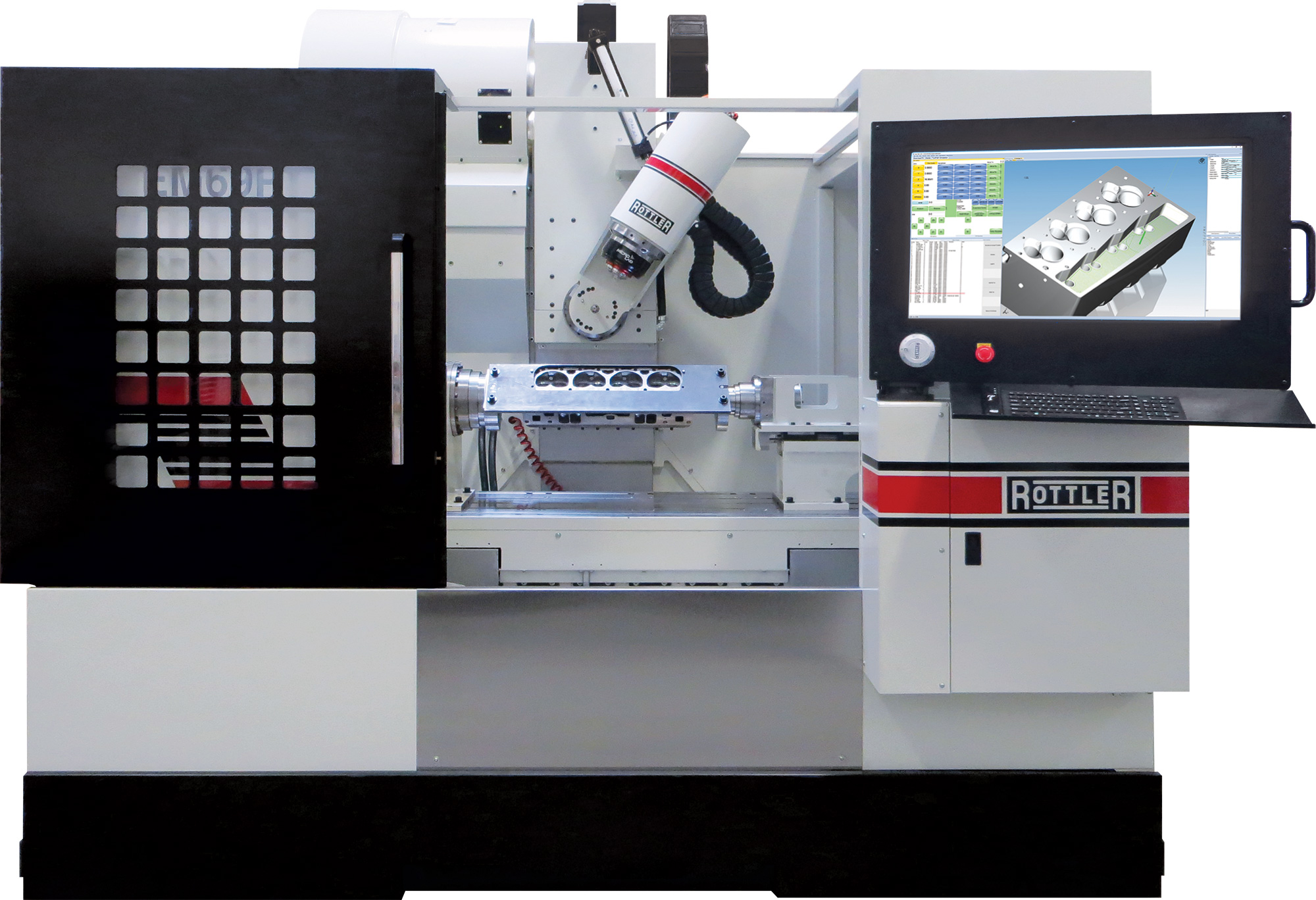

EM69HP

Control Rottler CNC
Slideway Type (X/Y/Z) Linear Roller Bearing Slideways
Spindle – Motor Torque 80NM
Table – Size 500 x 1500mm
Spindle – Rotation Speed 0 to 20000 RPM
Coolant Capacity 320 Liters
More details

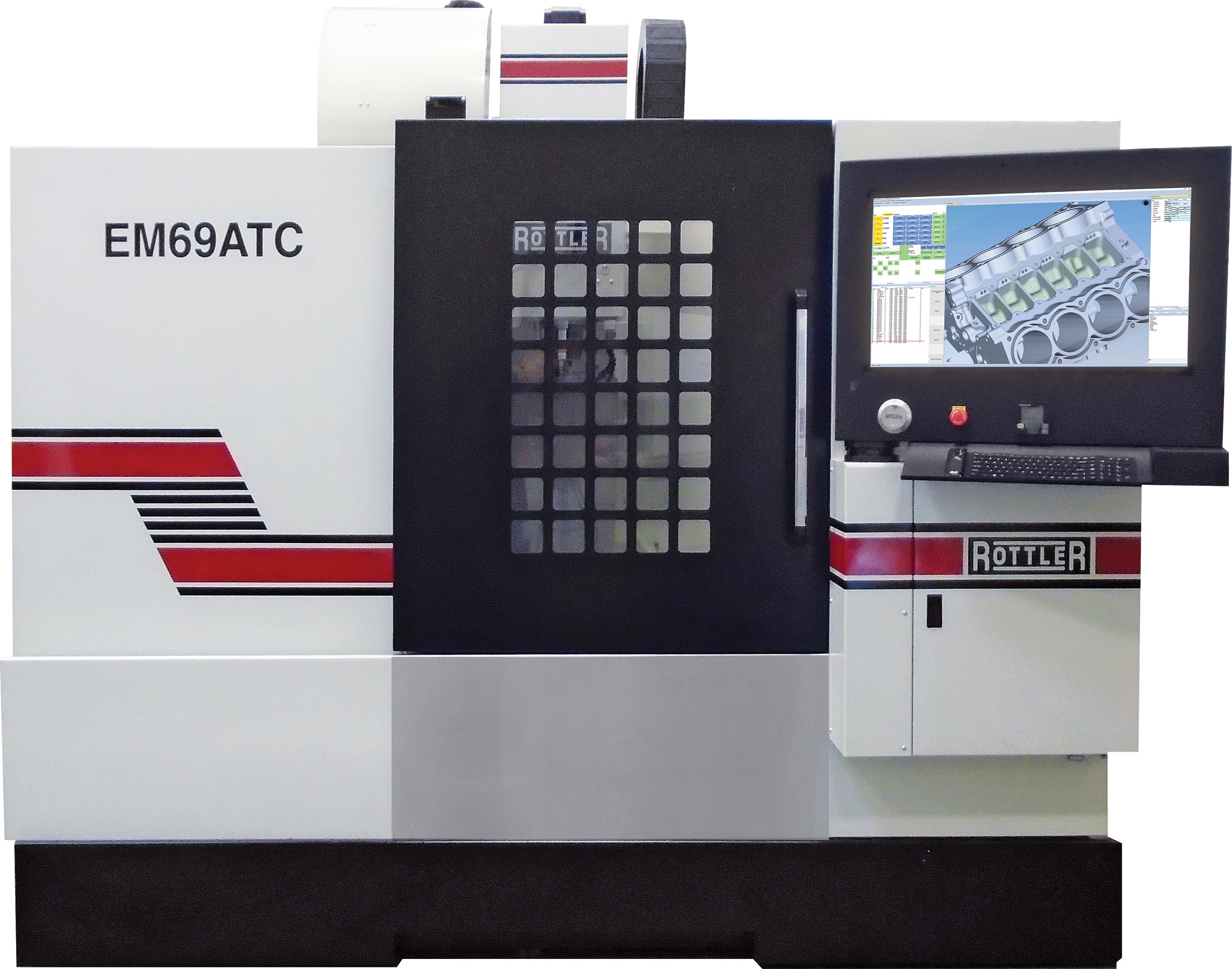

EM69ATC

Control Rottler CNC
Spindle – Motor Torque 95NM
Slideway Type (X/Y/Z) Linear Roller Bearing Slideways
Table – Size 500 x 1500mm
Spindle – Rotation Speed 0 to 8000 RPM
Coolant Capacity 113 Liters
More details

EM70 Series

General Purpose Machines

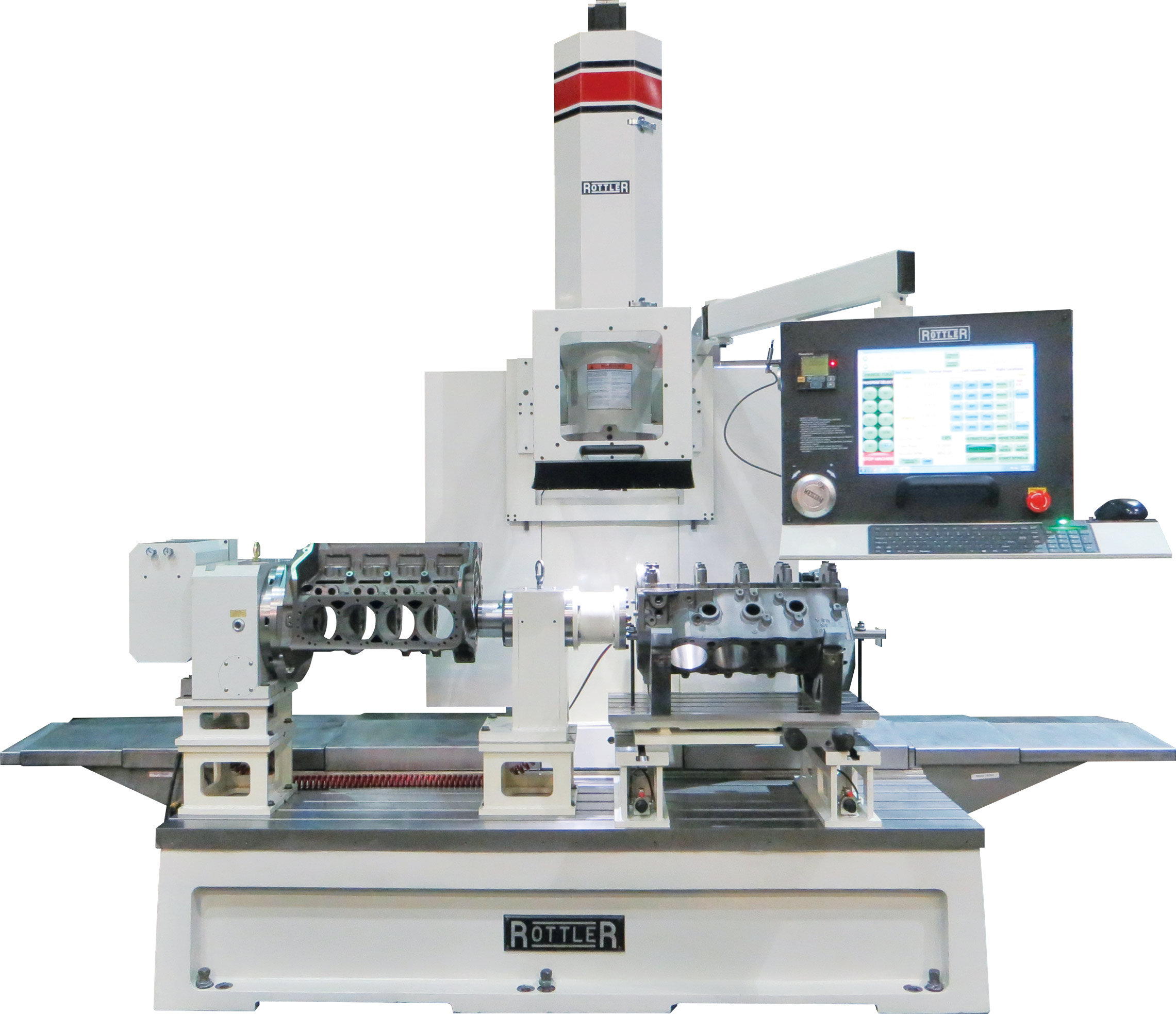

EM79

Control Automatic
Table – Size 2325 x 575mm
Travel – Horizontal (X Axis) 1829mm
Travel – In/Out (Y Axis) 355mm
Travel – Vertical (Z Axis) 457mm
Travel – Spindle Center to Column 551mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 178mm
Line Bore Range (with Optional Cutterheads) 48.5 – 150mm
More details

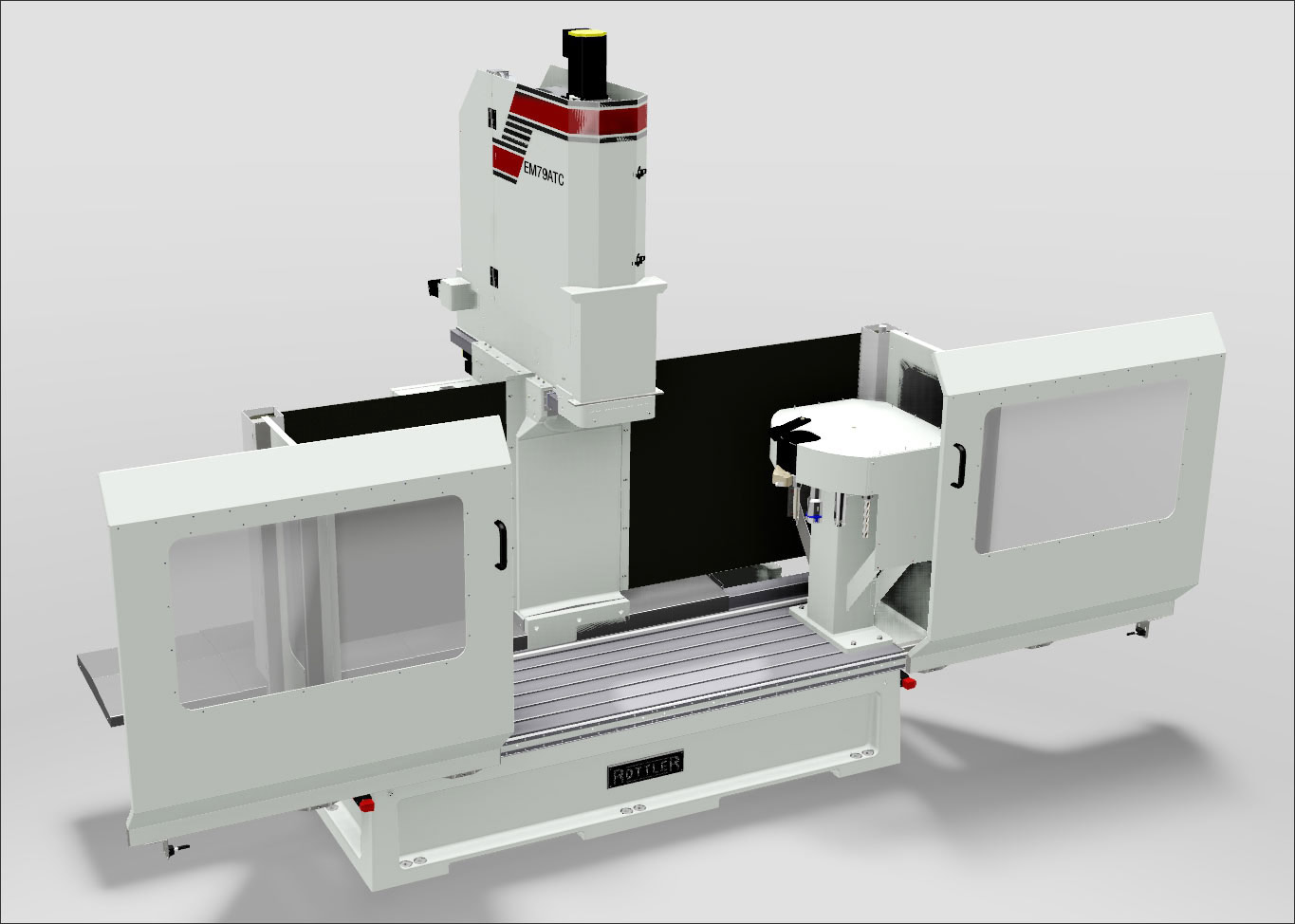

EM79ATC

Control Automatic
Table – Size 2325 x 575mm
Travel – Horizontal (X Axis) 1829mm
Travel – In/Out (Y Axis) 355mm
Travel – Vertical (Z Axis) 457mm
Travel – Spindle Center to Column 551mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 178mm
Line Bore Range (with Optional Cutterheads) 48.5 – 150mm
More details

EM100 SERIES

Extra Heavy Duty, Multi Purpose CNC Machining Centers

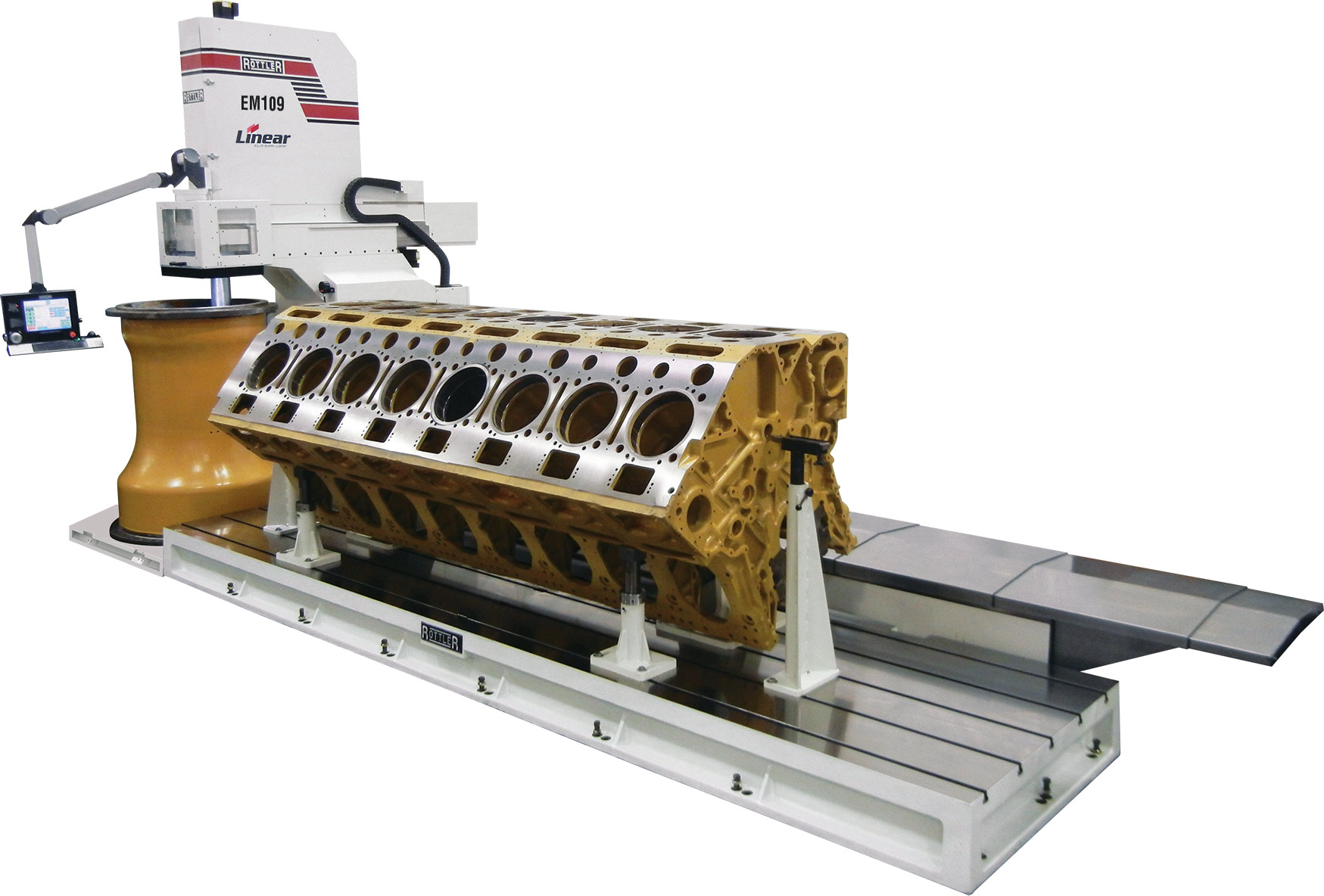

EM109H

Control Automatic
Table – Size 1700 x 6100mm
Travel – Horizontal (X Axis) 6300mm
Travel – In/Out (Y Axis) 600mm
Travel – Vertical (Z Axis) 915mm
Travel – Spindle Center to Column 1100mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 500mm
Line Bore Range (with Optional Cutterheads) 50 – 300mm
More details

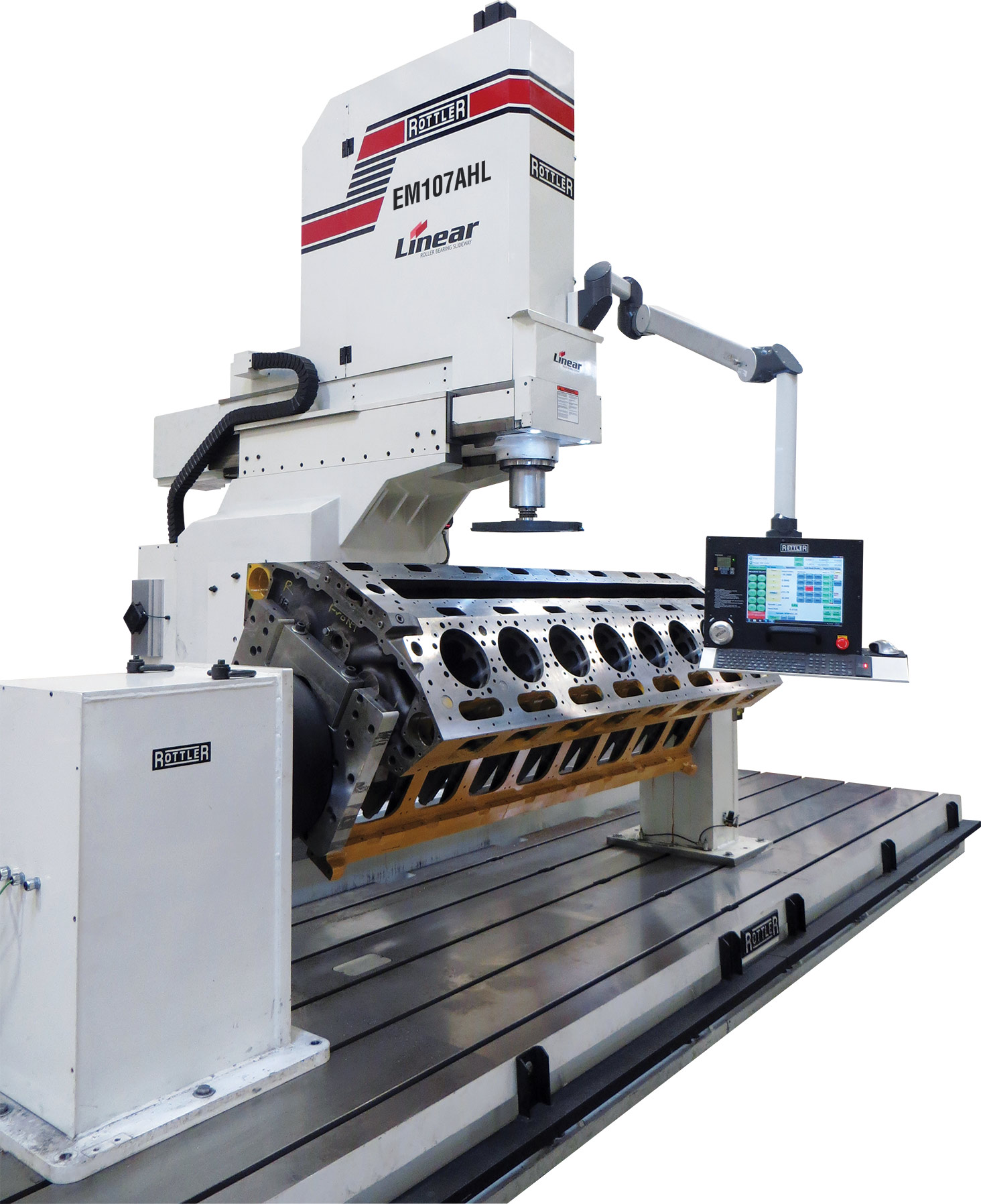

EM107H

Control Automatic
Table – Size 1700 x 6100mm
Travel – Horizontal (X Axis) 4166mm
Travel – In/Out (Y Axis) 600mm
Travel – Vertical (Z Axis) 915mm
Travel – Spindle Center to Column 1100mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 500mm
Line Bore Range (with Optional Cutterheads) 50 – 300mm
More details



EM103H

Control CNC Touch Screen
Table – Size 850 x 2100mm
Travel – Horizontal (X Axis) 2000mm
Travel – In/Out (Y Axis) 406mm
Travel – Vertical (Z Axis) 736mm
Travel – Spindle Center to Column 648mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 508mm
Line Bore Range (with Optional Cutterheads) 48.5 – 216mm
More details



EM104H

Control CNC Touch Screen
Table – Size 850 x 2820mm
Travel – Horizontal (X Axis) 2750mm
Travel – In/Out (Y Axis) 406mm
Travel – Vertical (Z Axis) 736mm
Travel – Spindle Center to Column 648mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 508mm
Line Bore Range (with Optional Cutterheads) 48.5 – 216mm
More details

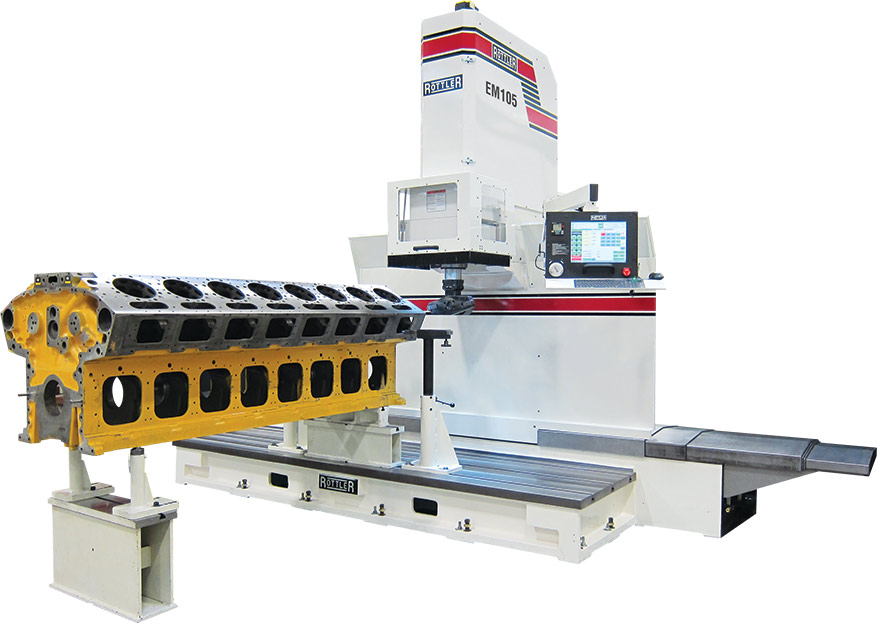

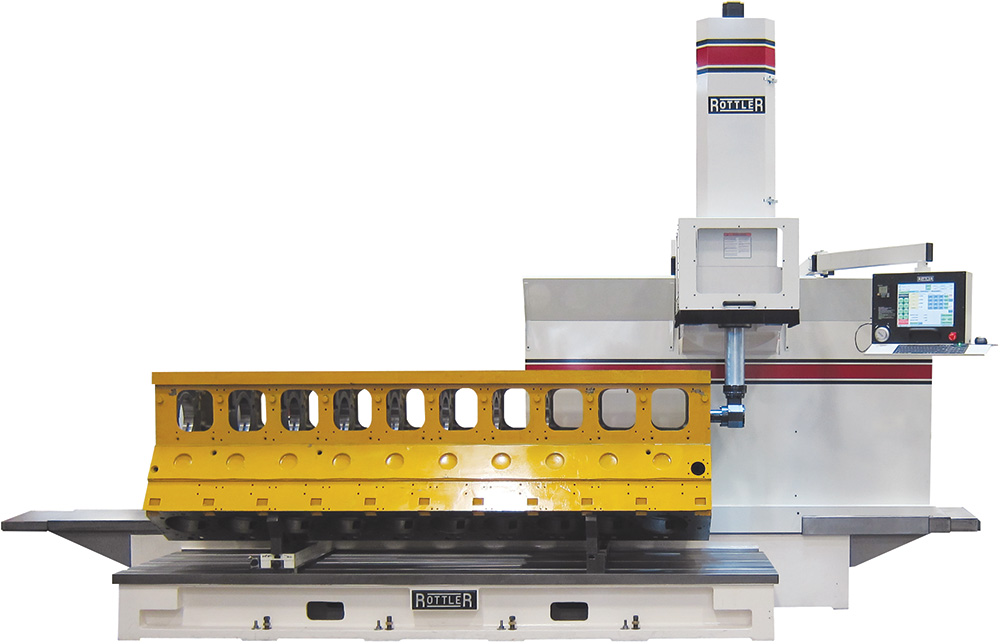

EM105H

Control CNC Touch Screen
Table – Size 850 x 3430mm
Travel – Horizontal (X Axis) 3350mm
Travel – In/Out (Y Axis) 406mm
Travel – Vertical (Z Axis) 736mm
Travel – Spindle Center to Column 648mm
Cylinder Bore Range (with Optional Cutterheads) 19 – 508mm
Line Bore Range (with Optional Cutterheads) 48.5 – 216mm
More details

F Series

Boring and Sleeving Machines

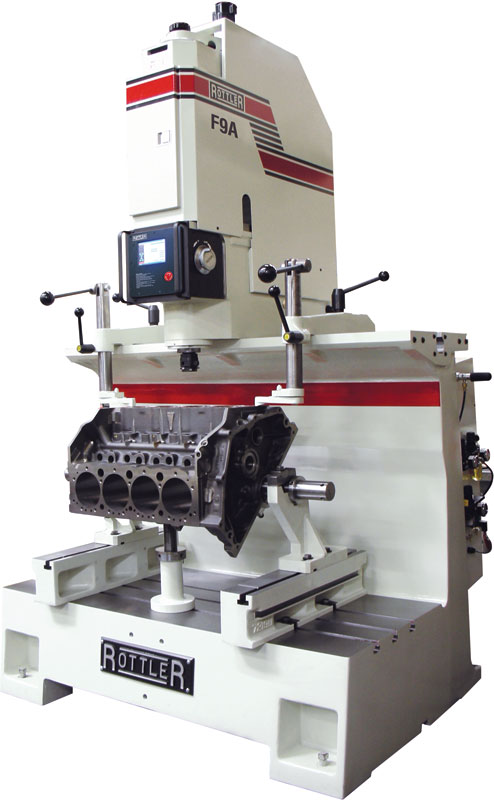

F9A

Control Automatic CNC
Table – Size 1270 x 530mm
Bore Capacity (with Optional Cutterheads) 38 – 127mm
Spindle Travel (Vertical) 330mm
Workhead Travel (Horizontal) 1000mm
More details



F10A

Control Automatic CNC
Table – Size 1370 x 530mm
Bore Capacity (with Optional Cutterheads) 38 – 228mm
Spindle Travel (Vertical) 381mm
Workhead Travel (Horizontal) 1270mm
More details

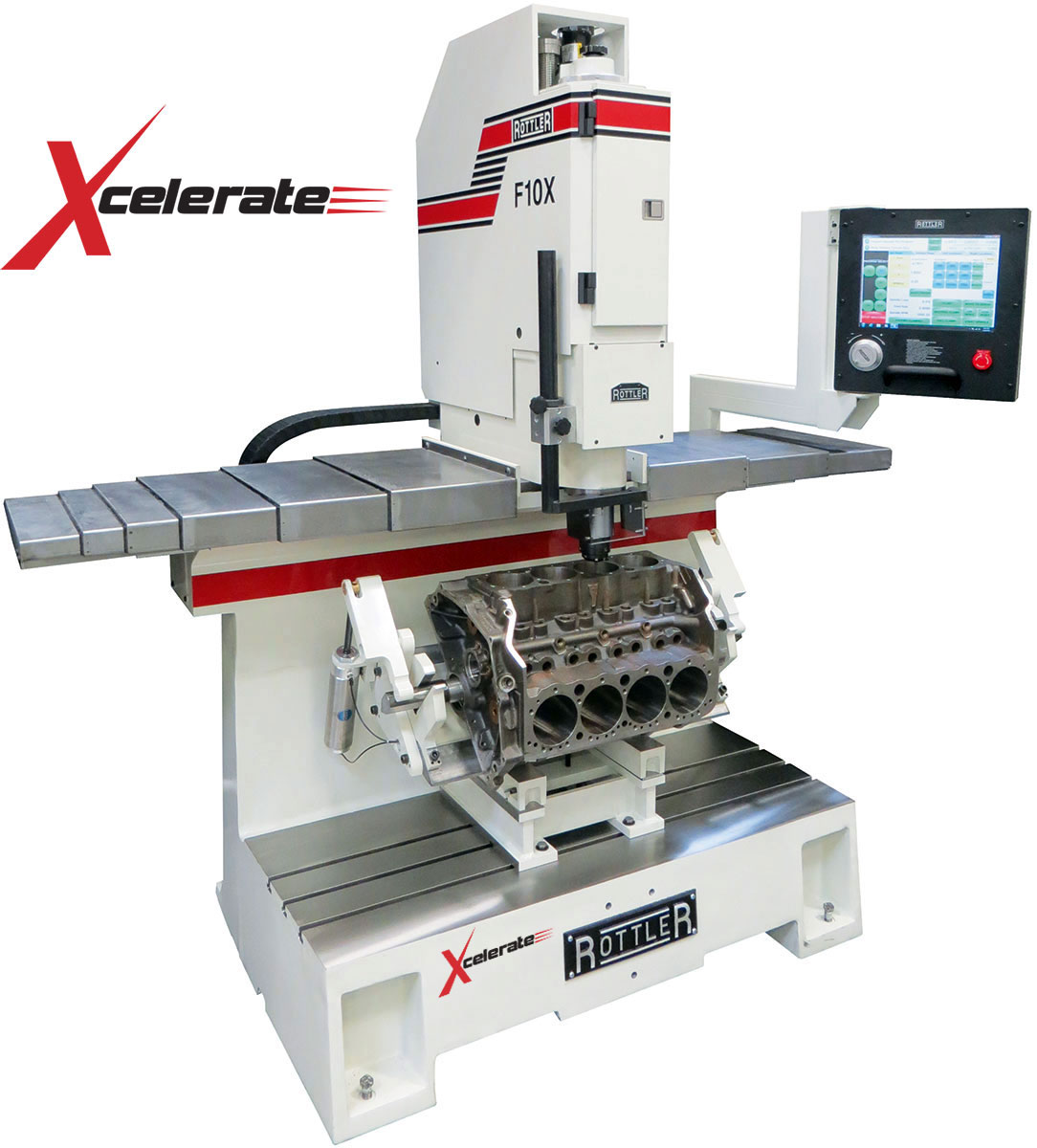

F10X

Control Automatic CNC
Table – Size 1370 x 530mm
Bore Capacity (with Optional Cutterheads) 38 – 228mm
Spindle Travel (Vertical) 381mm
Workhead Travel (Horizontal) 1270mm
More details

F60 Series

Multi Purpose CNC Machines



F69A

Control Automatic
Table – Size 1500 x 508mm
Travel – Horizontal (X Axis) 1028.7mm
Travel – In/Out (Y Axis) 520.7mm
Travel – Vertical (Z Axis) 744.7mm
Travel – Spindle Center to Column 530mm
Cylinder Bore Range (with Optional Cutterheads) 50.8 – 127mm
Line Bore Range (with Optional Cutterheads) 48.2 – 142.2mm
More details

H80 SERIES

Vertical Honing Machines

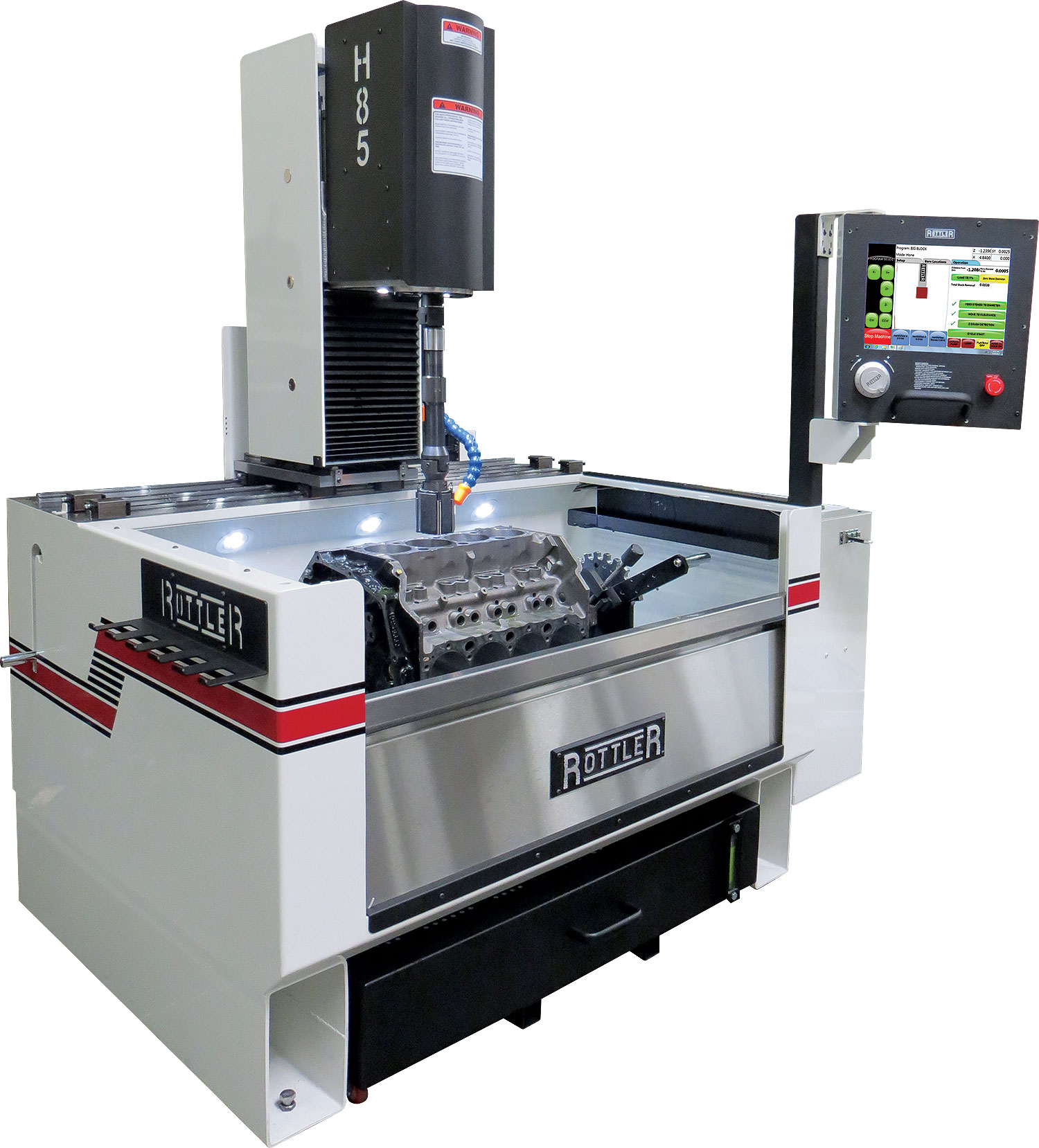

H85A

Maximum Length of Cylinder 432mm
Stroke Length 483mm
More details

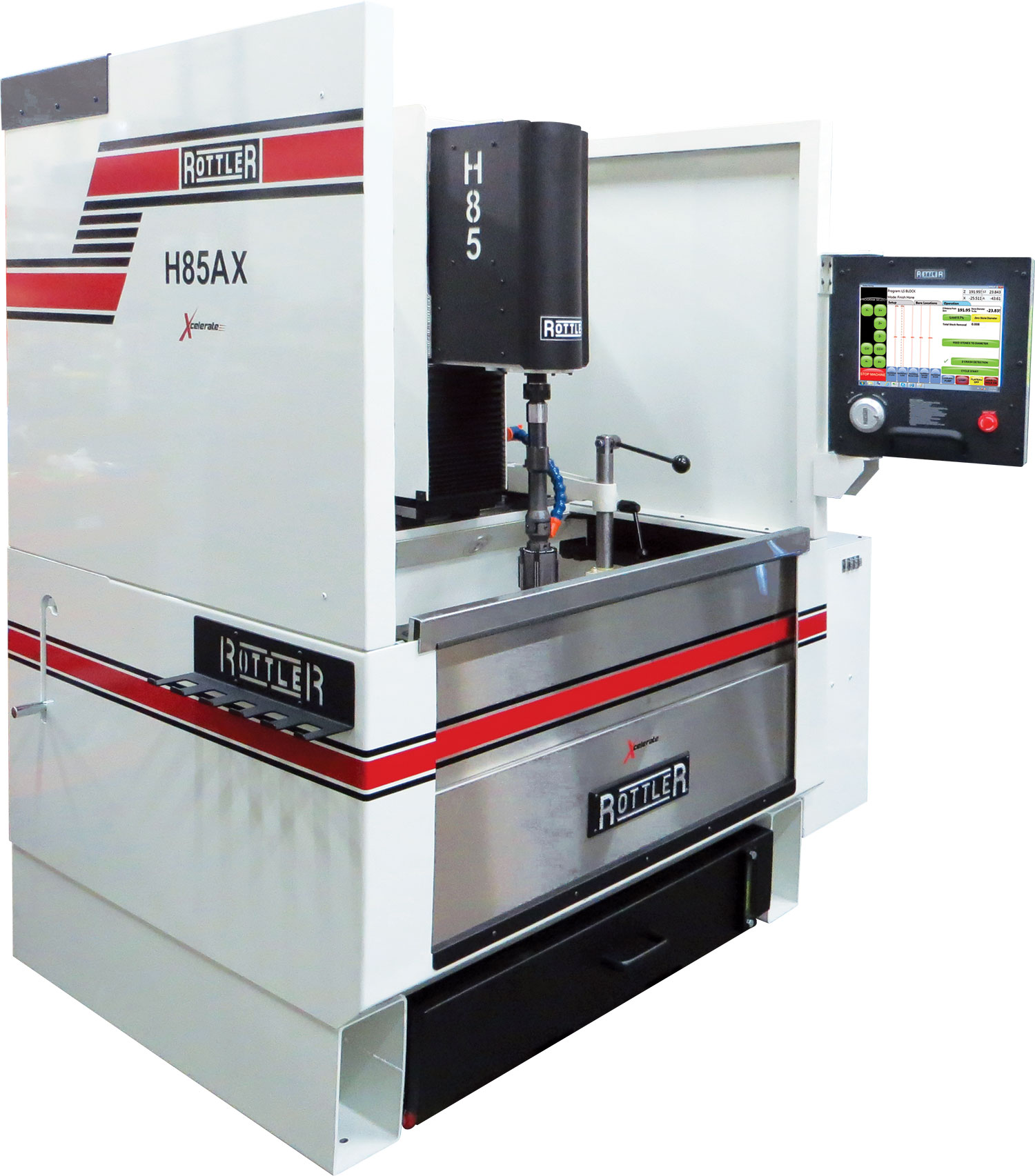

H85AX

Maximum Length of Cylinder 432mm
Stroke Length 483mm
More details

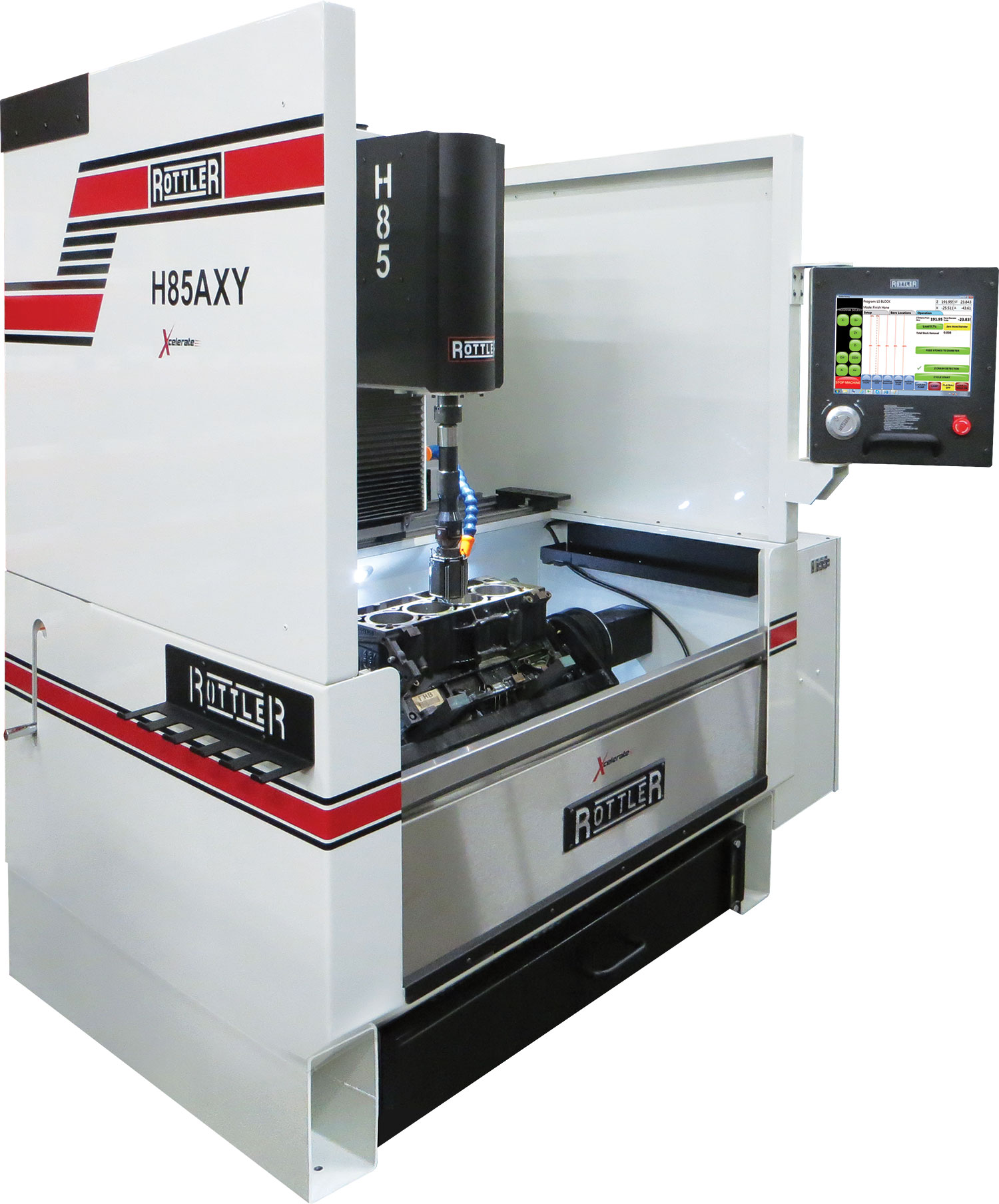

H85AXY

Maximum Length of Cylinder 432mm
Stroke Length 483mm
More details

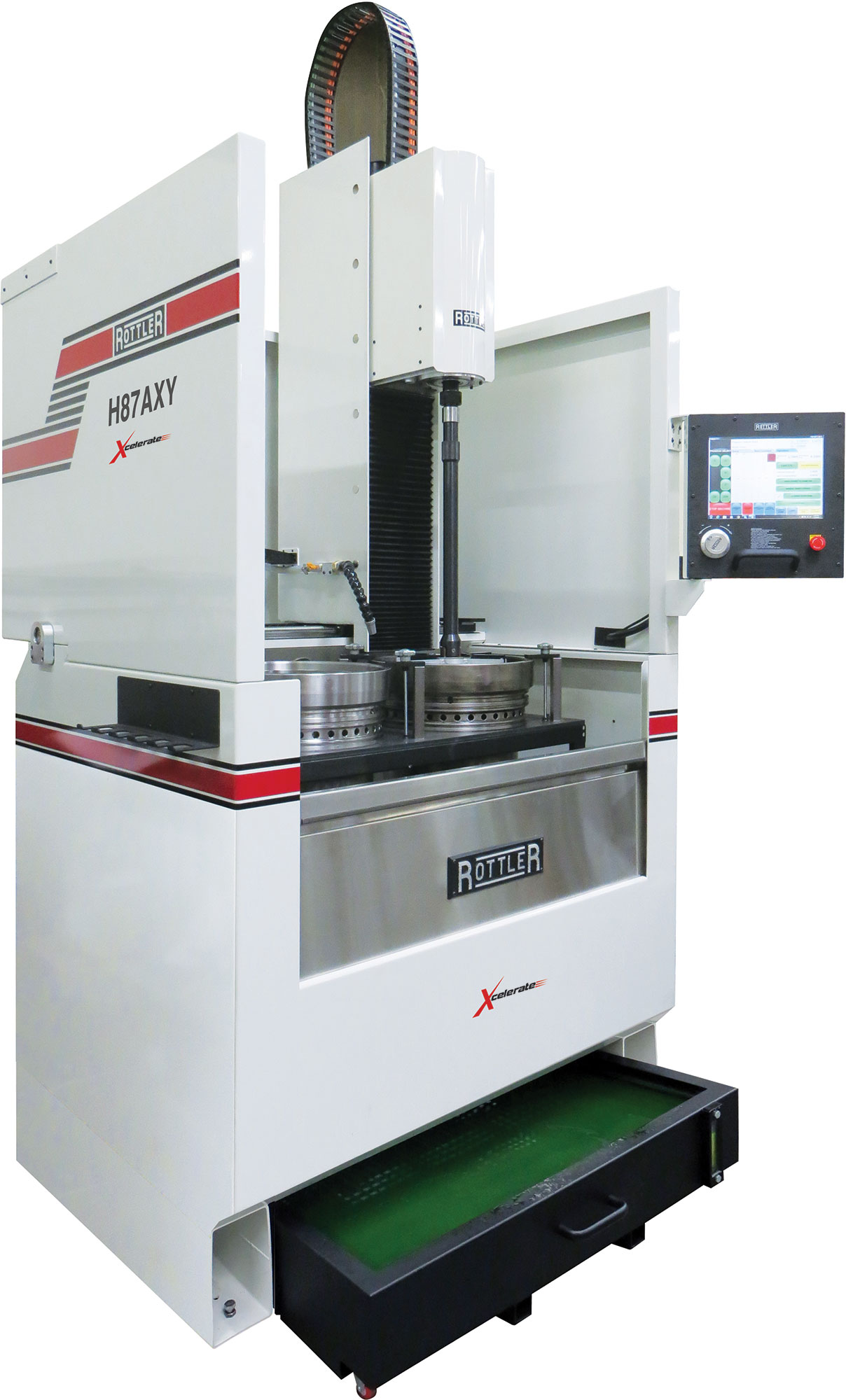

H87AXY

Maximum Length of Cylinder 965mm
Stroke Length 1016mm
More details

S Series

Surfacing Machines

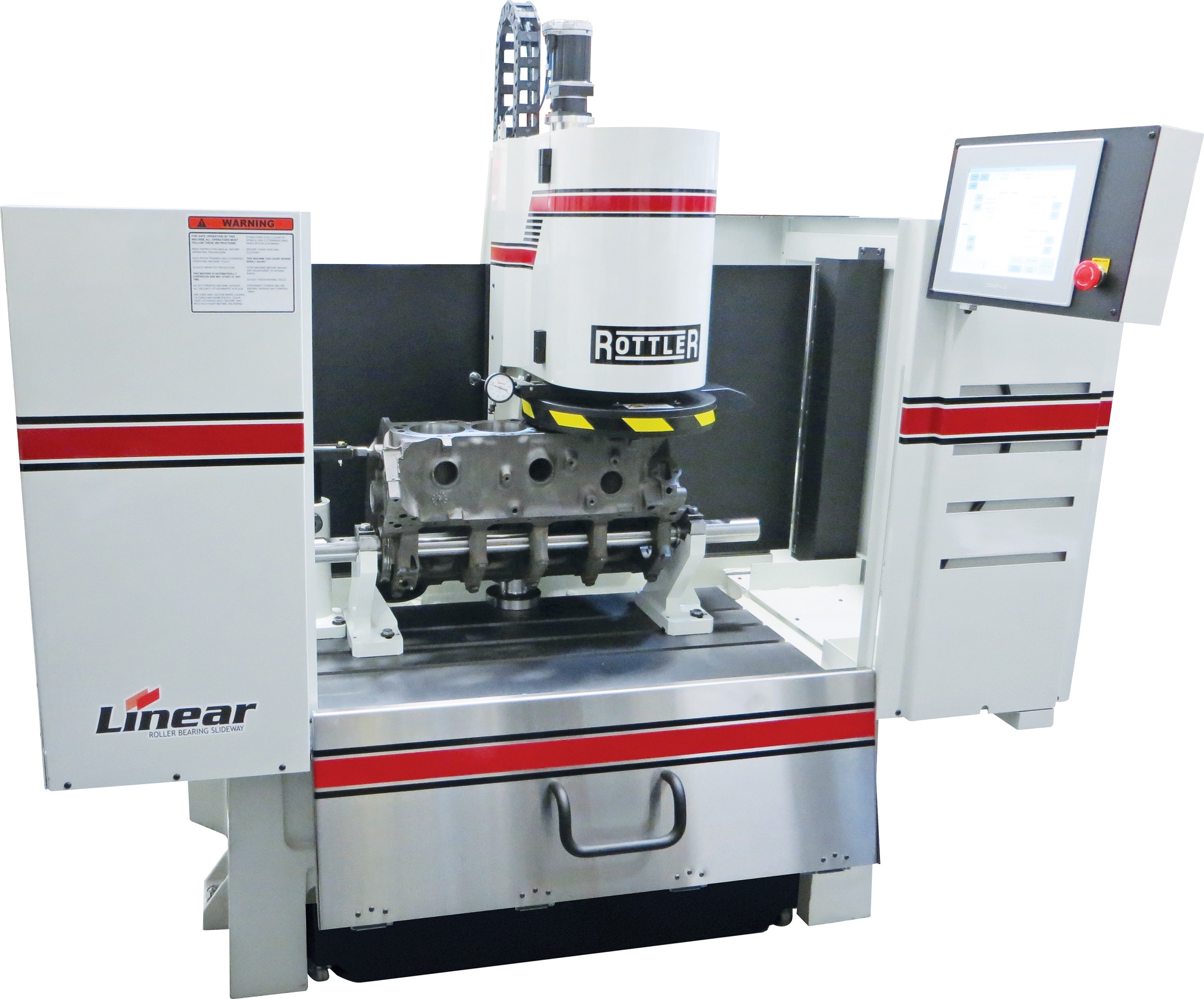

S85A

Cutter Diameter 356mm
Cutter Travel (Horizontal) 1092mm
Cutter Travel (Vertical) 483mm
More details

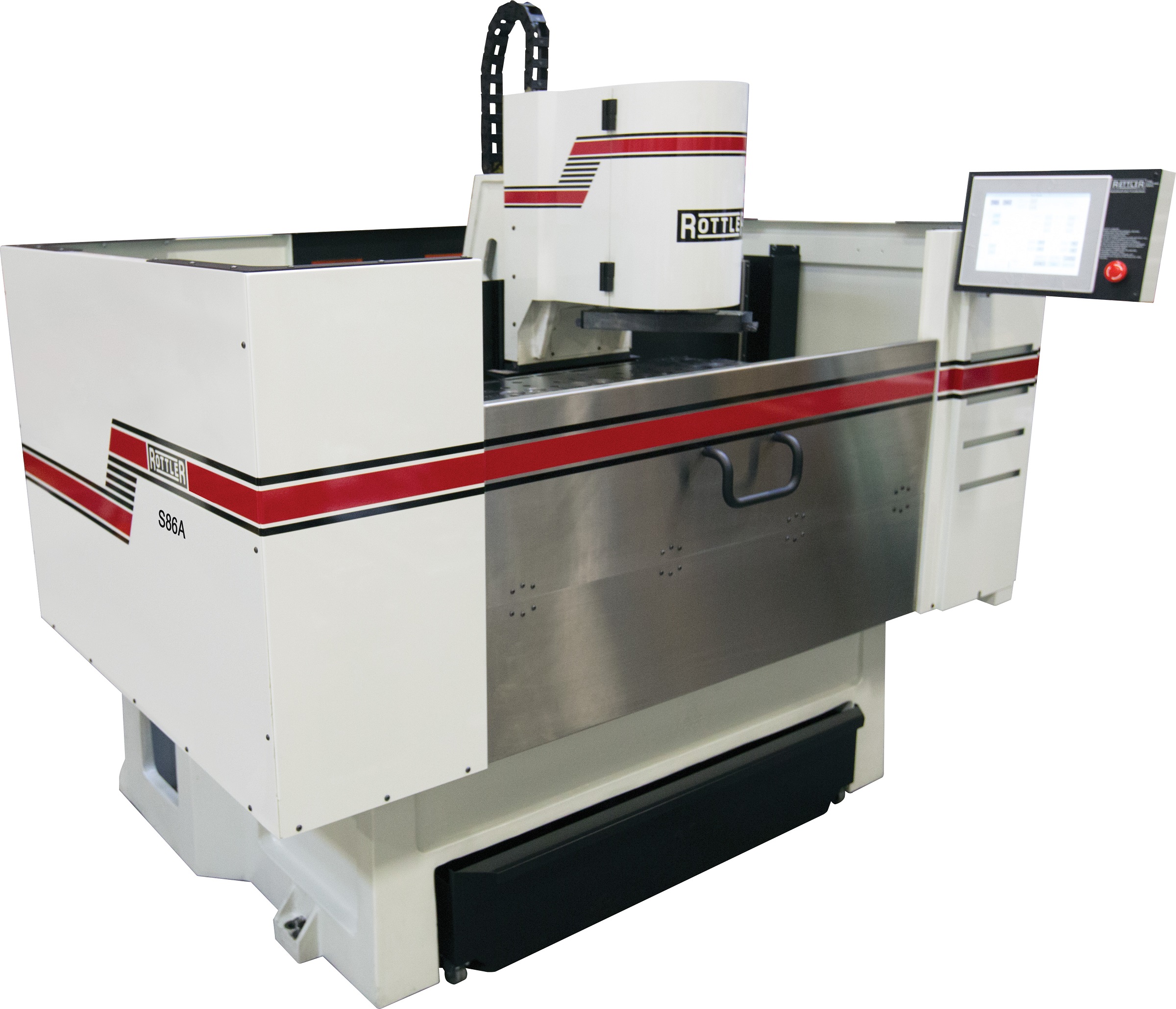

S86A

Cutter Diameter 406mm
Cutter Travel (Horizontal) 1346mm
Cutter Travel (Vertical) 483mm
More details

VR SERIES

Valve Refacing

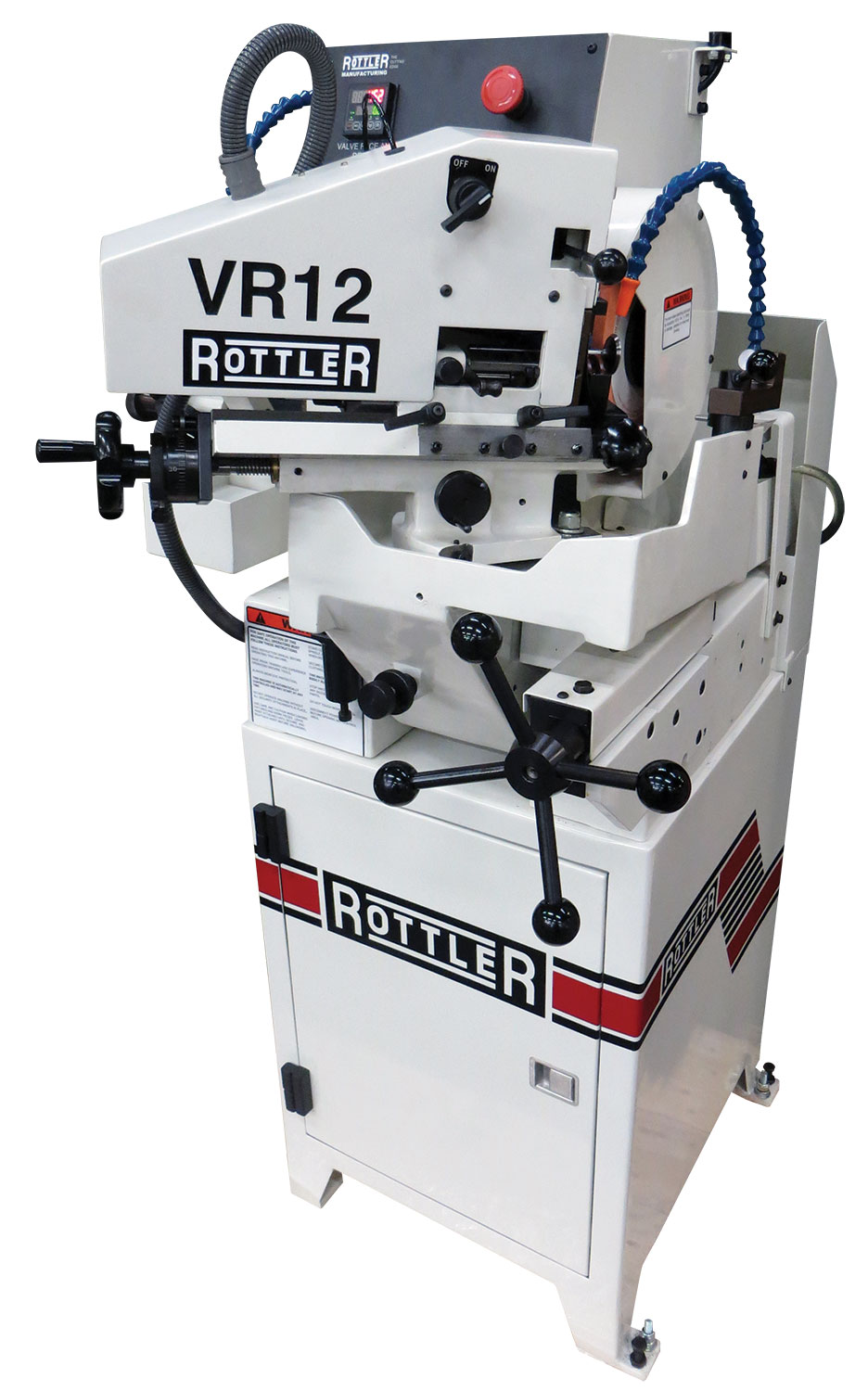

VR12

Base Cabinet Standard
Valve Stem Diameter Range (with Standard Chuck) 3.5mm-16mm
Valve Stem Length Range (with Standard Chuck) 50mm-260mm
Valve Total Length Range 70mm-400mm
More details
